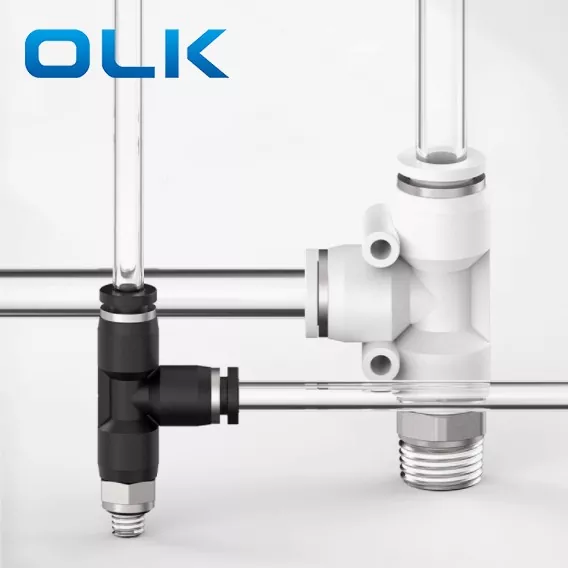

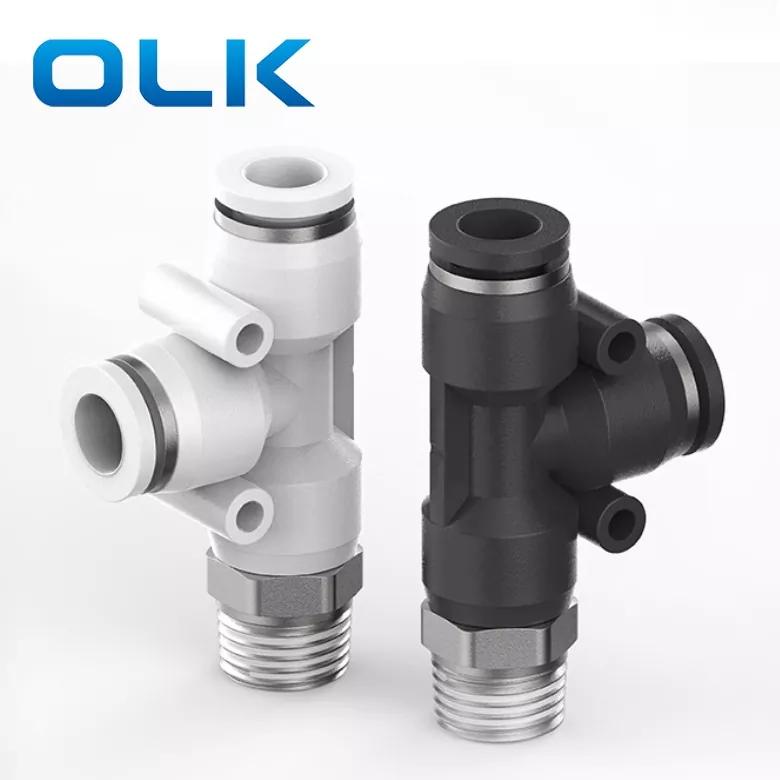

The PD Run Tee Push In Tube Fitting is a Y-type three-way push-in fitting, designed to split one air source into two outputs. It is ideal for systems requiring a one-in-two-out pneumatic connection.
PD fitting Key Features:Y-shape design for efficient air distribution;Push-to-connect ends for easy installation;Flexible routing for multi-directional tubing
|
Ordering code |
|||
|
PD |
8 |
-- |
01 |
|
Model |
Tube size (metric) |
|
Thread type (55°straight tube thread) |
|
PD series fitting |
4:4mm |
|
01:G1/8 |
|
|
6:6mm |
|
02:G1/4 |
|
|
8:8mm |
|
03:G3/8 |
|
|
10:10mm |
|
04:G1/2 |
|
|
12:12mm |
|
|
|
|
14:14mm |
|
|
|
|
16:16mm |
|
|
|
Fluid |
Air/water(conditional)/vacuum |
|
Operating pressure |
0-1.0Mpa |
|
Vacuum pressure |
-100Kpa(10 Torr) |
|
Operating temperature |
-10-60℃ |
|
Material |
NYLON(PA),Polyurethane(PU) |
|
Inch Tube Fitting |
Metric Tube Fitting |

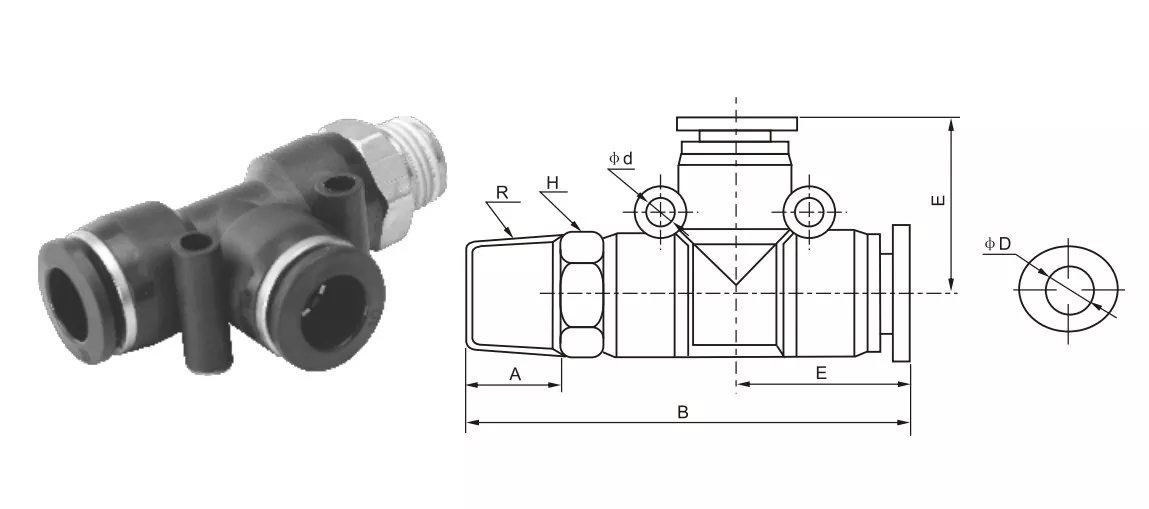

φD |
R |
A |
B |
E |
H |
φd |
|
PD5/32-M5 |
PD4-M5 |
4 |
M5 |
4.5 |
44 |
18.4 |
10 |
/ |
|
PD5/32-01 |
PD4-01 |
4 |
R1/8 |
7 |
44 |
18.4 |
10 |
/ |
|
PD5/32-02 |
PD4-02 |
4 |
R1/4 |
9 |
47.5 |
18.4 |
14 |
/ |
|
PD1/4-M5 |
PD6-M5 |
6 |
M5 |
4.5 |
47 |
20.8 |
12 |
3.5 |
|
PD1/4-01 |
PD6-01 |
6 |
R1/8 |
7 |
48.5 |
20.8 |
12 |
3.5 |
|
PD1/4-02 |
PD6-02 |
6 |
R1/4 |
9 |
51 |
20.8 |
14 |
3.5 |
|
PD1/4-03 |
PD6-03 |
6 |
R3/8 |
10 |
51.5 |
20.8 |
17 |
3.5 |
|
PD1/4-04 |
PD6-04 |
6 |
R1/2 |
11 |
54 |
20.8 |
21 |
3.5 |
|
PD5/16-01 |
PD8-01 |
8 |
R1/8 |
8 |
54 |
22.8 |
14 |
4.5 |
|
PD5/16-02 |
PD8-02 |
8 |
R1/4 |
10 |
55.5 |
22.8 |
14 |
4.5 |
|
PD5/16-03 |
PD8-03 |
8 |
R3/8 |
10 |
57 |
22.8 |
17 |
4.5 |
|
PD5/16-04 |
PD8-04 |
8 |
R1/2 |
11 |
58 |
22.8 |
21 |
4.5 |
|
PD3/8-01 |
PD10-01 |
10 |
R1/8 |
8 |
64.2 |
38.3 |
17 |
4.5 |
|
PD3/8-02 |
PD10-02 |
10 |
R1/4 |
10 |
67 |
38.3 |
17 |
4.5 |
|
PD3/8-03 |
PD10-03 |
10 |
R3/8 |
10 |
66 |
28.3 |
17 |
4.5 |
|
PD3/8-04 |
PD10-04 |
10 |
R1/2 |
11 |
67 |
28.3 |
21 |
4.5 |
|
PD1/2-01 |
PD12-01 |
12 |
R1/8 |
8 |
67 |
29.6 |
19 |
5 |
|
PD1/2-02 |
PD12-02 |
12 |
R1/4 |
10 |
68.8 |
29.6 |
19 |
5 |
|
PD1/2-03 |
PD12-03 |
12 |
R3/8 |
10 |
68.8 |
29.6 |
19 |
5 |
|
PD1/2-04 |
PD12-04 |
12 |
R1/2 |
11 |
70 |
29.6 |
21 |
5 |
|
|
PD14-03 |
16 |
R3/8 |
12 |
|
35 |
24 |
4 |
|
|
PD14-04 |
16 |
R1/2 |
15 |
85 |
35 |
24 |
4 |
|
Name/type |
Interface Structure Description |
|
Run Tee (PD) |
The main airflow is straight, and the branches are led out vertically |
|
Branch Tee(PB) |
Two interfaces are connected at right angles, one on the branch of "T" |
|
Equal Tee |
Three ports with the same size |
What means‘RUN TEE’ in connector fitting?
Tee "means T-shaped connector (tee) with three interfaces;
'Run' refers to the main channel (the direction of the main airflow is a straight line);
So 'Run Tee' means that the main channel is straight through, and a branch is vertically led out in the middle.
